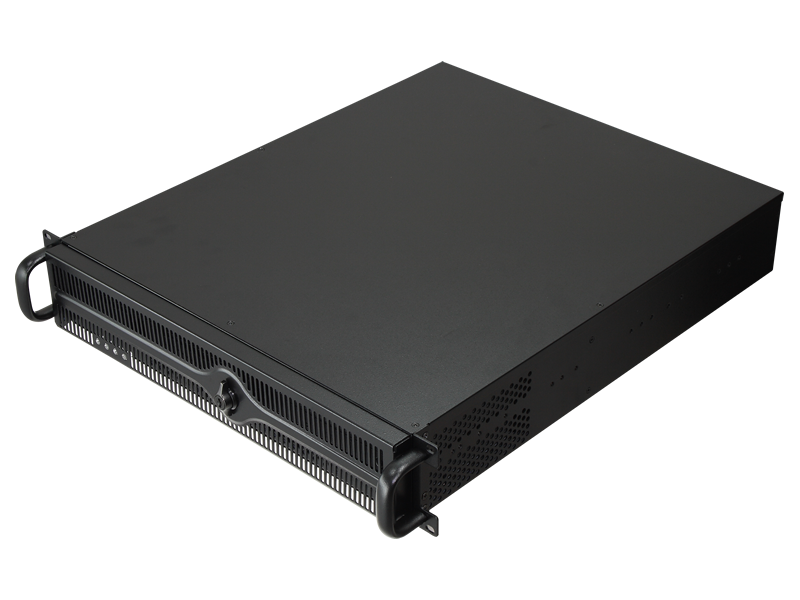

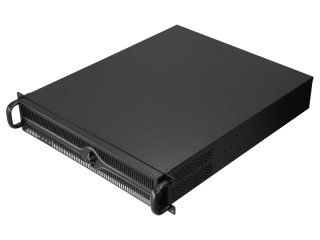

S241-ODD

2U Rackmount Chassis
ATX (12" x 9.6") or micro ATX

Features & Benefits

  • Supports 12” x 9.6” MB

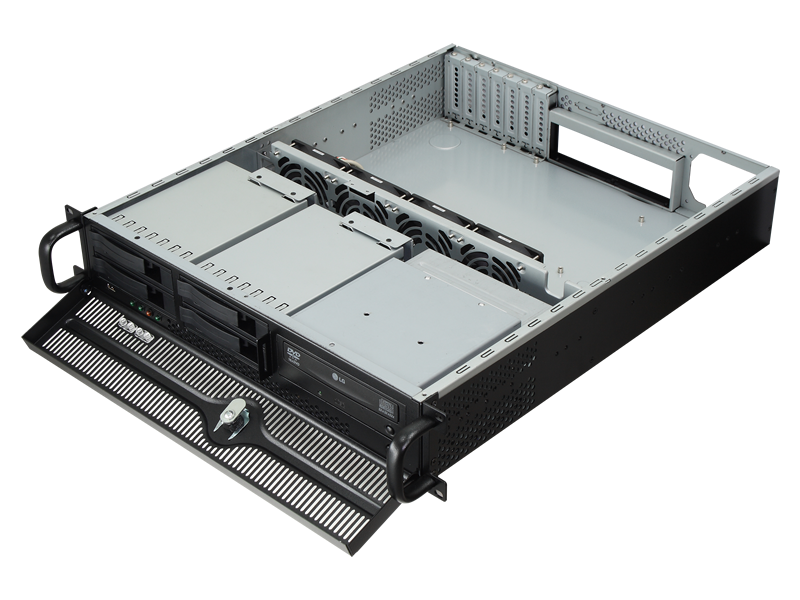

  • Supports 4 x 3.5" Hot-swap configuration in one chassis
  • 6Gb/s or 12Gb/s four-port backplane
  • 3.5" HDD carrier for both 2.5" and 3.5" HDDs
  • Highly compatible slide rail with pre-position hole
  • Supports 1U single and 1+1 redundant PSU

Specification

Model Name

S241-ODD

MB

ATX (12" x 9.6") or micro ATX

Hot Swap Driver Bay

4 x 3.5" HDD

Backplane

N/A

External Bay

1 x 5.25 Bay

Internal Bay

0

Cooling Fan

8025 ball bearing fan x 4 (central)

Rear Window

Low Profile (7 Slots)

PSU

Single or Redundant

Front I/O

Power/HDD/LAN/SYS/VGA
Momentary power switch and recessed reset switch

Dimension (DxWxH mm)

482x512x87.4 mm

Sheet Metal

SGCC

N.W

9.4kg

G.W

11.12kg

Sheet Metal Thickness

1.2mm

Remark

Door bezel (Option)

20/40/40HQ feet

20': 512, 40': 1087, 40' HQ: 1254 (Single packing)
