S2E04-216

2U Rackmount Chassis
Upto EEB (12" x 13")

Features & Benefits

  • Supports 16 x 3.5" Hot-swap configuration in one chassis
  • 6Gb/s or 12Gb/s sixteen-port backplane with smart fan control
  • Up to Five 8038 cooling fans with anti-vibration mechanism and air flow  management
  • Easy-swap 3-sot(Riser) or 7-slot(Low profile) rear window
  • Front access info tag for easy server management
  • Easy to disassemble and assemble the top cover design
  • Supports 1U single and 1+1 redundant PSU

Specification

Model Name

S2E04-216

MB

Upto EEB (12" x 13")

Hot Swap Driver Bay

16 x 2.5" HDD

Backplane

Support SATA3 (12Gb/s or 6Gb/s) & SAS2 (SFF-8087 and 8643 Interface)
Active Thermal Sensor with Fan Speed Control

Slim ODD Bay

Slim ODD*1 & 525*1

2.5" Internal Bay

2

Cooling Fan

8038 ball bearing fan x 4 (Up to 5)

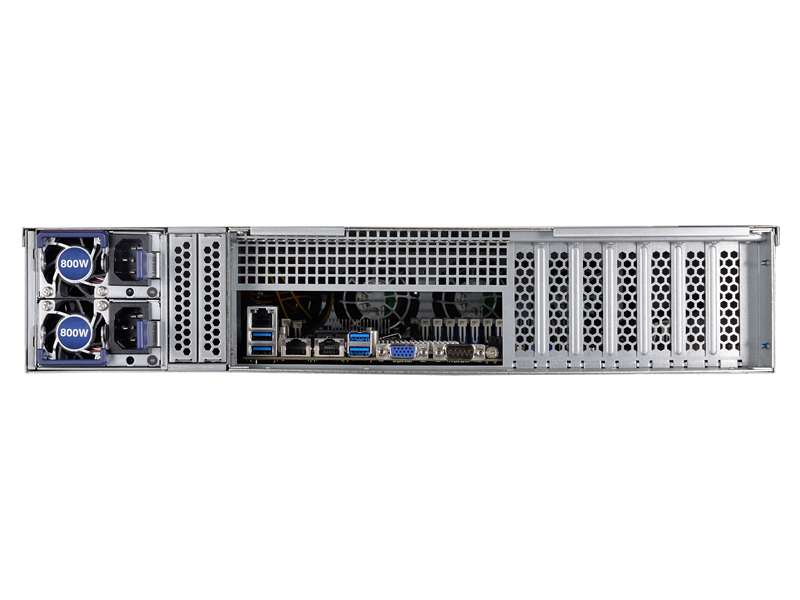

Rear Window

Low Profile (7 Slots) or Full High (3 Slots)

PSU

Single or Redundant

Slide Rail

Ultra Slim Rail

Front I/O

VGA x 1
HDD LED x 1
Alarm LED x 1
LAN LED x 2
Power Button (With LED) x 1
System Reset x 1
Alarm Mute Button x 1

Dimension (DxWxH mm)

680x436x86.3 mm

Sheet Metal

SGCC

N.W

10.74kg

G.W

15.04kg

Sheet Metal Thickness

1.2mm

Remark

Additional Rear Window can be discussed for different SKU Request

20/40/40HQ feet

20": 216, 40": 468, 40"HQ: 520 (Single packing)
